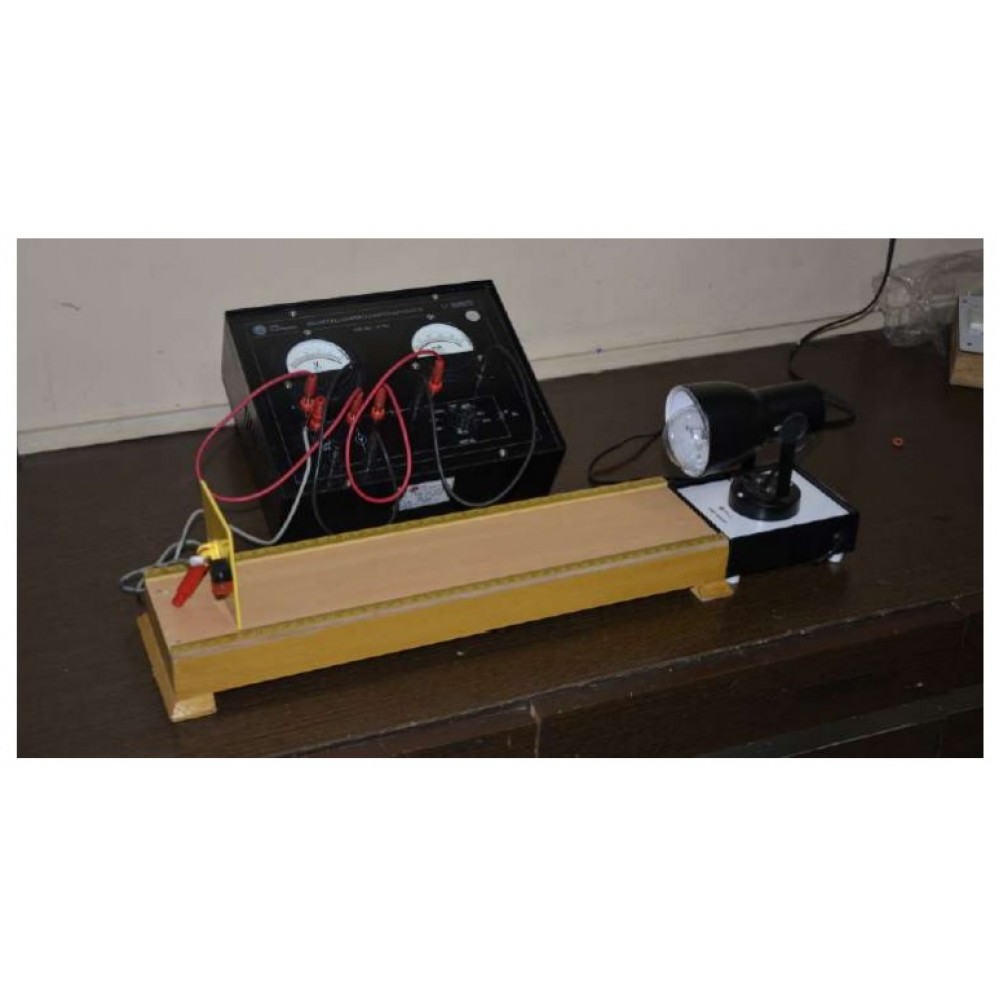

SOLAR CELL CHARACTERISTICS TRAINER KIT
Product Description
Experimental Training Board has been designed specifically to study characteristics of a Solar Cell. Experimentation with Solar Energy is a versatile training system to be used in laboratories. It introduces the basic concept of solar cell (photovoltaic cell) of converting sunlight directly into electrical energy. The system works as a live demonstration unit of solar cells in terms of its concepts and applications.
The board is absolutely self contained and requires no other apparatus.
Features
1. Solar Cell Trainer Board
The Trainer board comprises of two analogue meters one is voltmeter and another is ammeter. Circuit diagram is printed on board along wid a variable resistance of six different values.
2. Wooden Plank
A wooden plank of half meter is provided with the instrument. Plank is fitted with wooden scale to measure the distance between solar cell and lamp.
3. Lamp House
A lamp house is provided with the instrument as a light source. It has a 100W Bulb which operates on 220V AC 50Hz.
4. Solar Cell
A solar cell of 4V 100mA is provided with the instrument which is connected with the trainer. It is water proof.
5. Connecting Wires - 4 Nos
Banana wires of 12 inches long with 4 mm banana plug is provided with the instrument. Supplied with complete instruction manual
- To study V- I Characteristics of a solar cell.
- To study illumination vs Voltage Characteristics of Solar cell.
- To Study Load Characteristics of a solar cell
Application: Training Purpose
Technical Specifications
- Solar Cell : 4V 100mA
- Wooden Plank : 50 cm Long
- Lamp House : 100W 220VAC
- Ammeter : Analogue
- Range : 0 - 50 mA
- Voltmeter : Analogue
- Range : 0-5 V
- Variable Resistance : 100, 220, 330, 470,1K, 2K Ohms
- Dimensions : W315mm x D200mm x H75mm
- Weight : 3 Kg Approx
