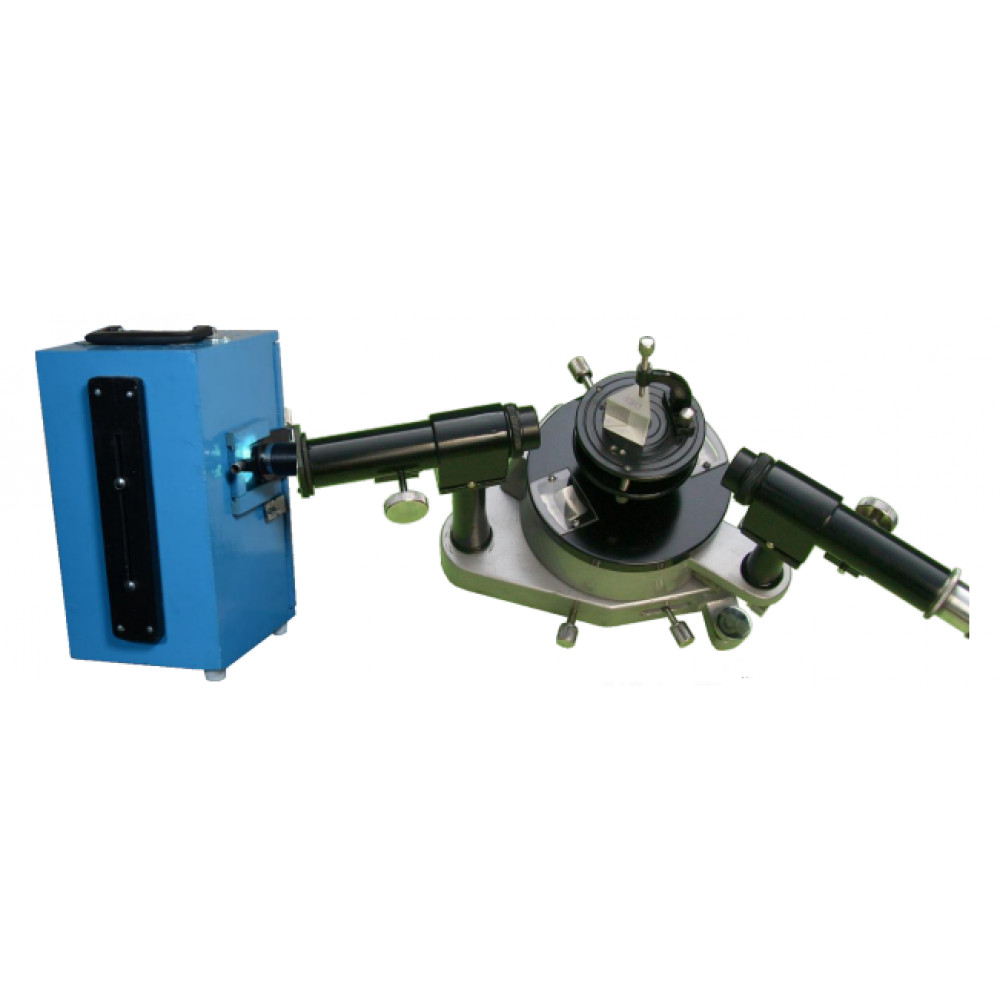

Determination of Angle of Prism By Spectrometer
- 2 or more ₹10,325.00
- Agriculture Lab Equipments
- Biology Lab Equipments
- Boards & Programmers
- Chemistry Lab Equipments
- Electronic Instruments
- Laboratory Glassware
- Laboratory Plasticware
- Measuring & Tool
- Robotics
- Pharmacy Lab
- Microscopes & Accessories
- Analytical Equipments
- Electronics Components
- Sensors & Modules
- Physics Lab
- Power Supplies
Your shopping cart is empty!
Product Description
Experiments:
- Schuster’s method determination of angle of prism
- Measure Dispersion Relation of a Glass Prism in the Visible Spectrum
- To determine the dispersive power of the material of the prism for violet & yellow colors of mercury light with the help of spectrometer
APPARATUS USED
1. SPECTROMETER
Base : painted base with 3 leveling screws.
Scale : circular scale is graduated 360' in half degrees & is attached to the arm with telescope ,so that it moves when telescope is moved.
Vernier : 30 or 60 divisions of Vernier coincide with 29 (or 59) divisions of the main circular divisions.
Collimator : This horizontal tube has an achromatic lens( 7” F.L.) at one end and a sliding tube with on adjustable vertical slit at the other. The distance between the lens & slit can be changed by a rack & pinion for obtaining parallel rays
Slit : consists of two sharp edges; one fixed while the other can be moved by a screw provided.
Telescope : it is an astronomical telescope with an achromatic objective of 7” F.L. And a Ramsden's eye piece.
Prism Table : two circular plates separated by 3 springs having leveling screws. Its height can be adjusted by a screw on its side. On its top a grating holder & prism holder is mounted.
Vernier : 60/30sec.
SIZE : 6” prism stand, grating holder
2. PRISM 32 X 32 MM DF
3. Mercury Vapour Lamp 80 watt with choke & wooden box having slits fitted.
FEATURES
- Spectrometer 6 inch
- Prism 32 x 32 mm DF
- Mercury Vapour Lamp with choke & box 80 W
